7.62 x 39 mm

Caliber : 7.62 x 39 mm

Effective Range : 350m

Mode of Fire : Single Shot & Auto

Muzzle Velocity : 710-715 m/s

Type of Feed : Curved Magazine with 30 round capacity

Weight : 3.6 kg

Rifling : 4 Grooves

Breech Bolt : Rotating Type

Versions : Slid foldable, Fixed But, Down Foldable, Extendab Butt

7.62 x 51 mm

Caliber : 7.62 x 51 mm

Range : 800m

Mode of fire : Single

Operation : Direct lug locking with barrel

Weight : 4.4 kg (without Mag., Sight & Bipod)

Length of Weapon : 1055 mm (without flash suppressor)

Magazine Capacity : 05 rounds

Safety : Quick release push button type

5.56 x 30 mm

Caliber : 12.7 mm

Effective Range : I ) At Air Target - 1500m

II ) At Ground Target - 2000m

Muzzle Velocity : 845 m/s

Rate of Fire : 700-800 rds/min

Weight : 25 kg

Type of Feed : Belt System

Rifling : 8 Grooves

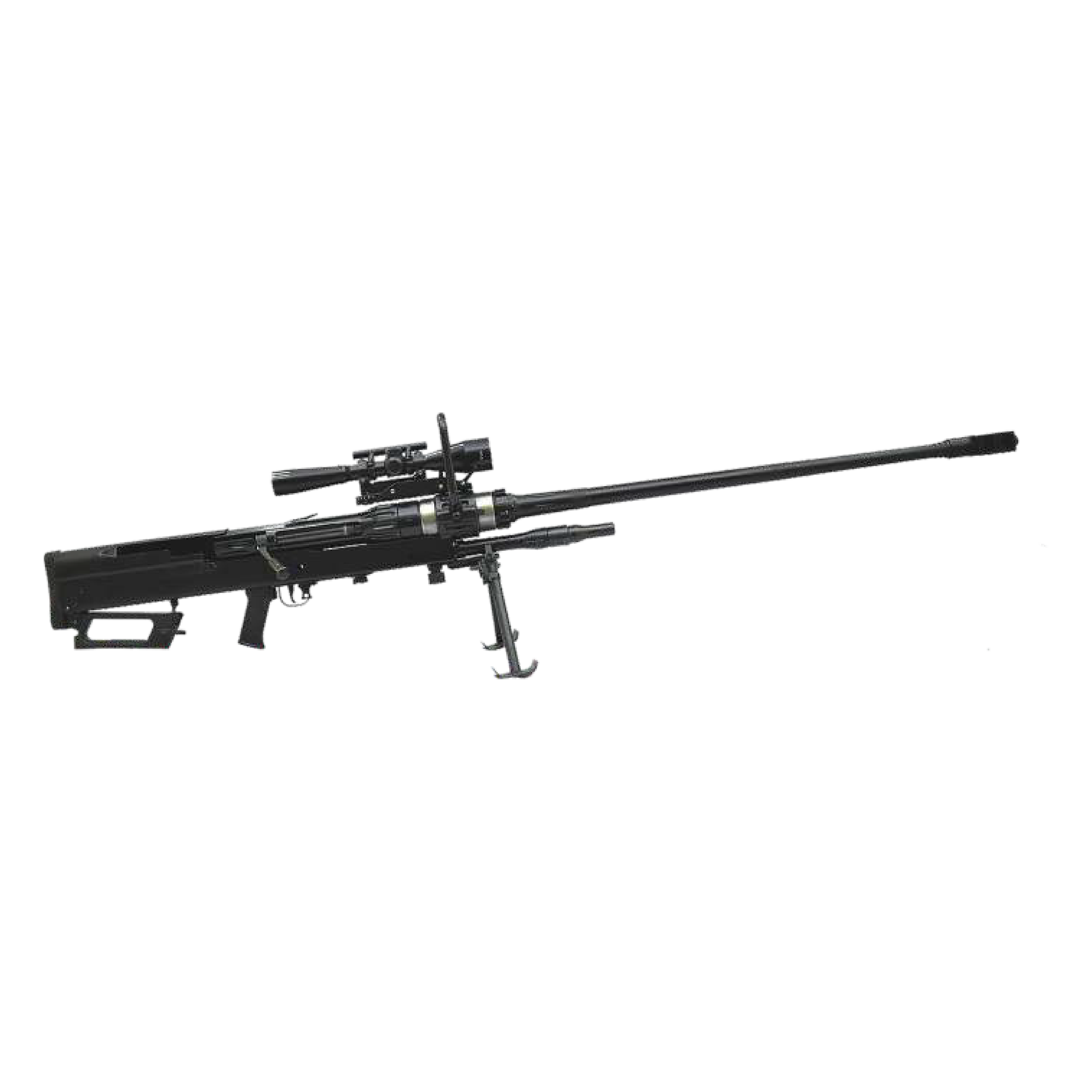

14.5 x 20 mm (20mm)

Multi Caliber : 14.5 x 114 mm (20 × 82 mm)

Range : 1800 m (1300 m)

Muzzle Velocity : 1080 m/s (720 m/s)

Weight : 29 kg (26kg)

Overall Length : 2.015 m (1.795 m)

Barrel : 8 Groove (1m Length Quick Change)

1.22 m Length

Quick Change Type

Pitch of Rifle : 1 : 420 mm (1 : 560 mm)

Caliber : 12 Bore

Range : 25.4 m

Mode of Fire : Single Shot

Operation : Single Shot Breech Loaded

Weight : 3.05 kg (PB)

3.06 kg (NPB)

Length of Weapon : 952 mm (PB)

994 mm (NPB)

Magazine Capacity : 4 rounds

Safety : Mechanical

Caliber : 9 mm

Range : 50 m

Operation : Simple Blow Back

Weight : 935 g (with Empty Magazine)

Action : Double Action

Length of Weapon : 5 mm

Magazine Capacity : 13 rounds

Safety : Mechanical

Ammunition Used : Cartridge SA Ball 9 mm (Parabellum)

Caliber : 0.32 mm

Range : 18 m

Operation : Simple Blow Back

Weight : 640 g (with Empty Magazine)

Action : Double Action

Length of Weapon : 154 mm

Magazine Capacity : 8 rounds

Safety : Mechanical as well as Inbuilt Safety

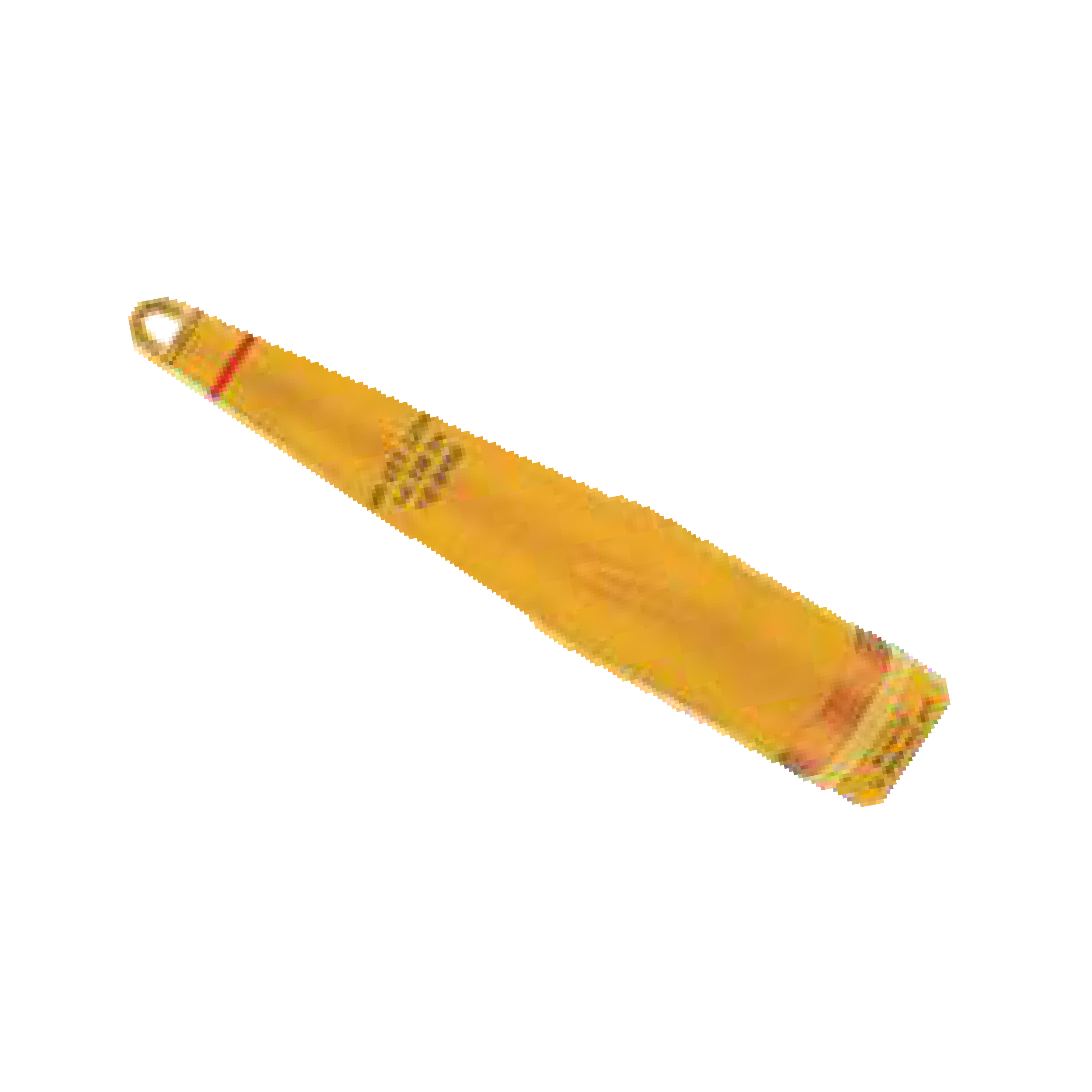

40 mm

Nomenclature : Shell 40 mm PFFC

(Pre Formed Fragmente Cubes)

Ammunition Details

Fired From : 40 mm L 70

Muzzle Veocity : 1005 m/s

Maximum Range : 5000 m

Rate of Fire : 120-140 rpm

Fuze : Proximity Fuze FB 40

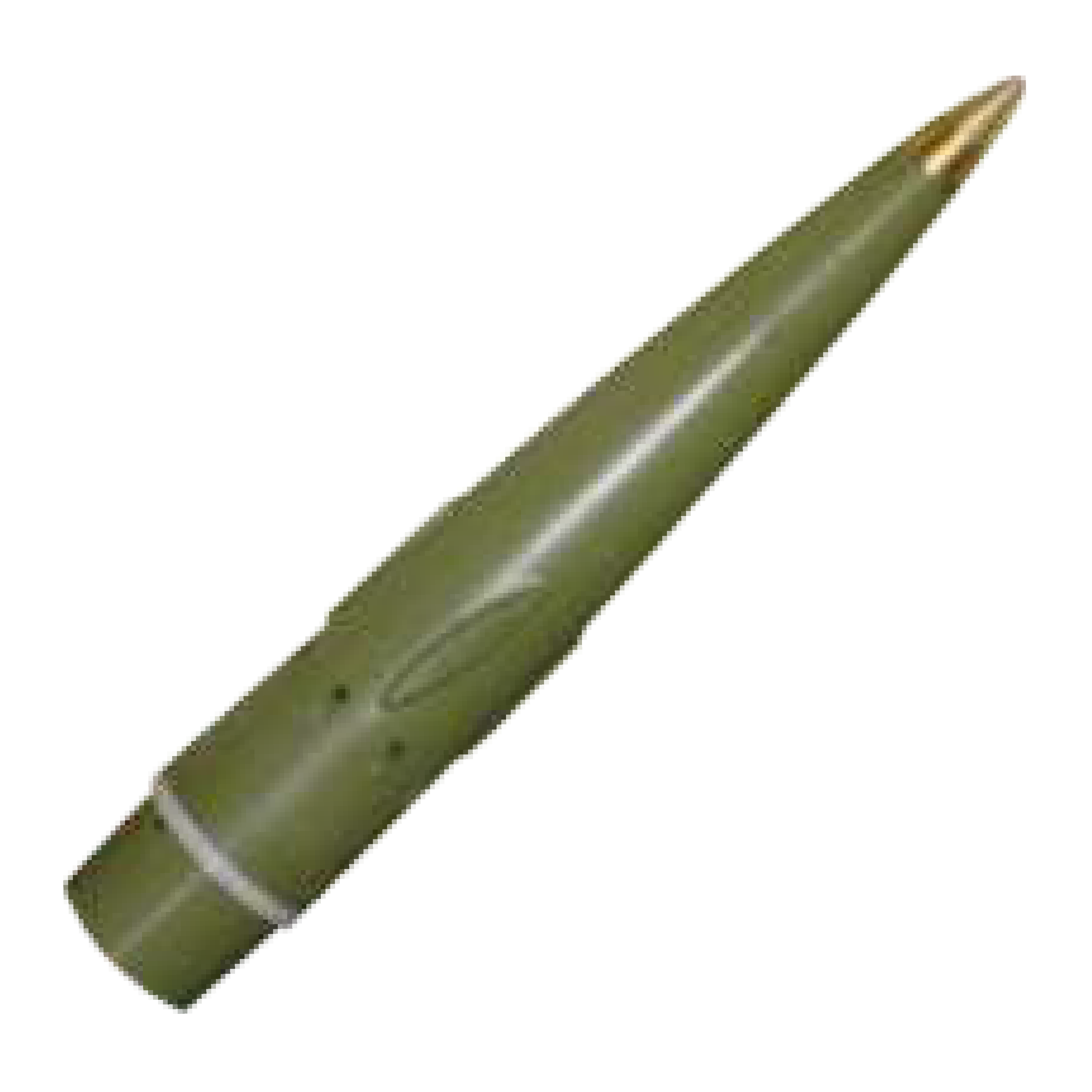

76 mm

Nomenclature : 76/62 SRGM (Super Rapid Gun Mount)

TP (Target Practice), TPT (Target Practice Tracer)

Ammunition Details

Fired From : 76/62 SRGM Gun

Caliber : 76 mm

Rate of Fire : 120 rpm

Muzzle Velocity : 910 m/s, Spin - 24100 rpm

Range : 15.9 km (min) to 20 km (max)

Type of Elevation (deg) : 85

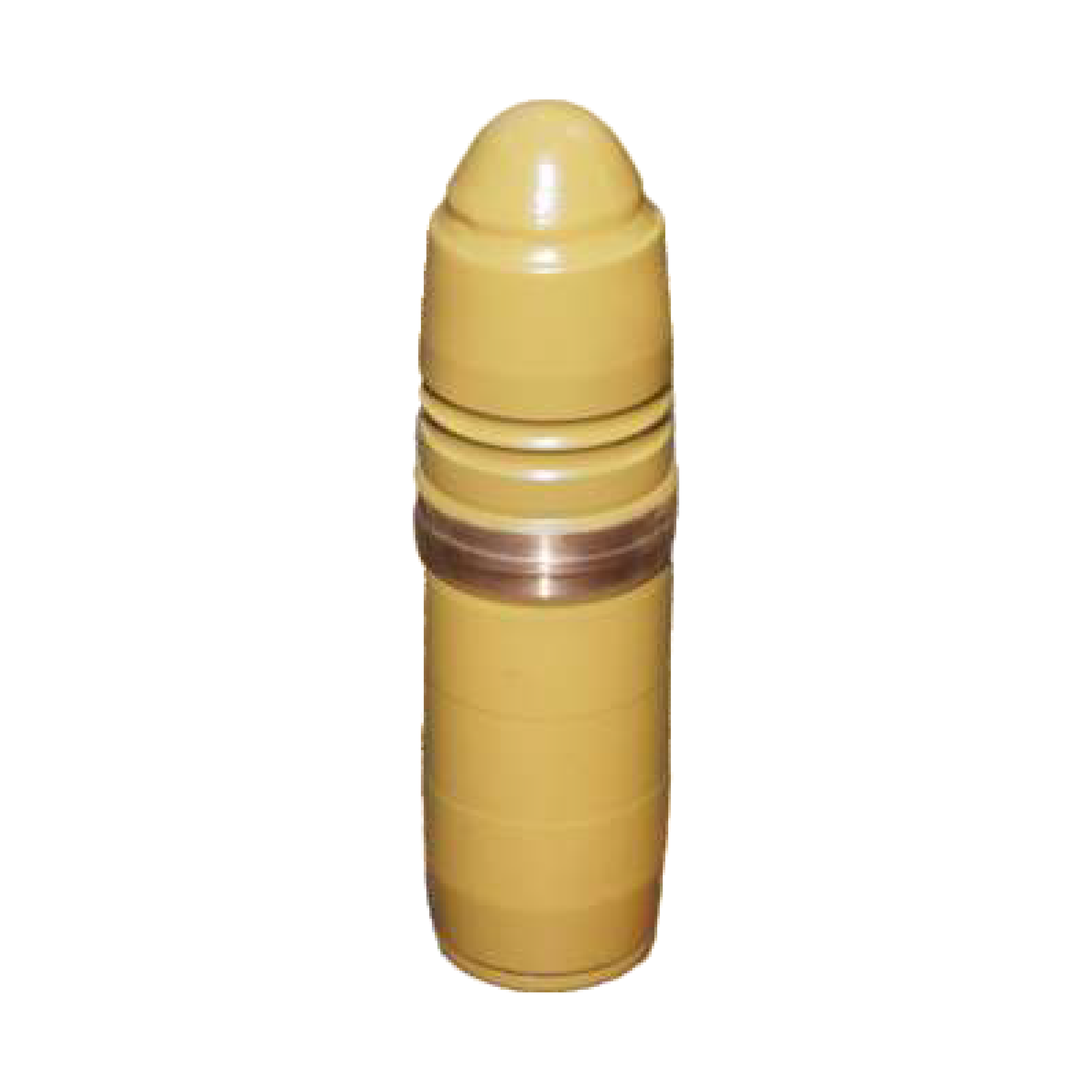

155 mm

Nomenclature : SHELL 155 mm HE ERFB BT / BB

Ammunition Details

HE Composition : TNT-99%, N.C.-0.5%, PNT-0.2%, HNS-0.3%

Range : 30 km

Overall Length : 843 mm

Weight of body on

mean Dimensions : 32.3-33.75 kg

155 mm

Nomenclature : SHELL 155mm ILLUMINATING ERFB

Ammunition Details

Net Explosive Content : 2.6 kg (approx.)

Luminosity : 750,000 Candela minimum

Range : 24 km (32km extended range with BB)

Time of Burning : 90 sec (minimum)

Size of Shell approx. (DxL) : 154.5 mm x 843 mm

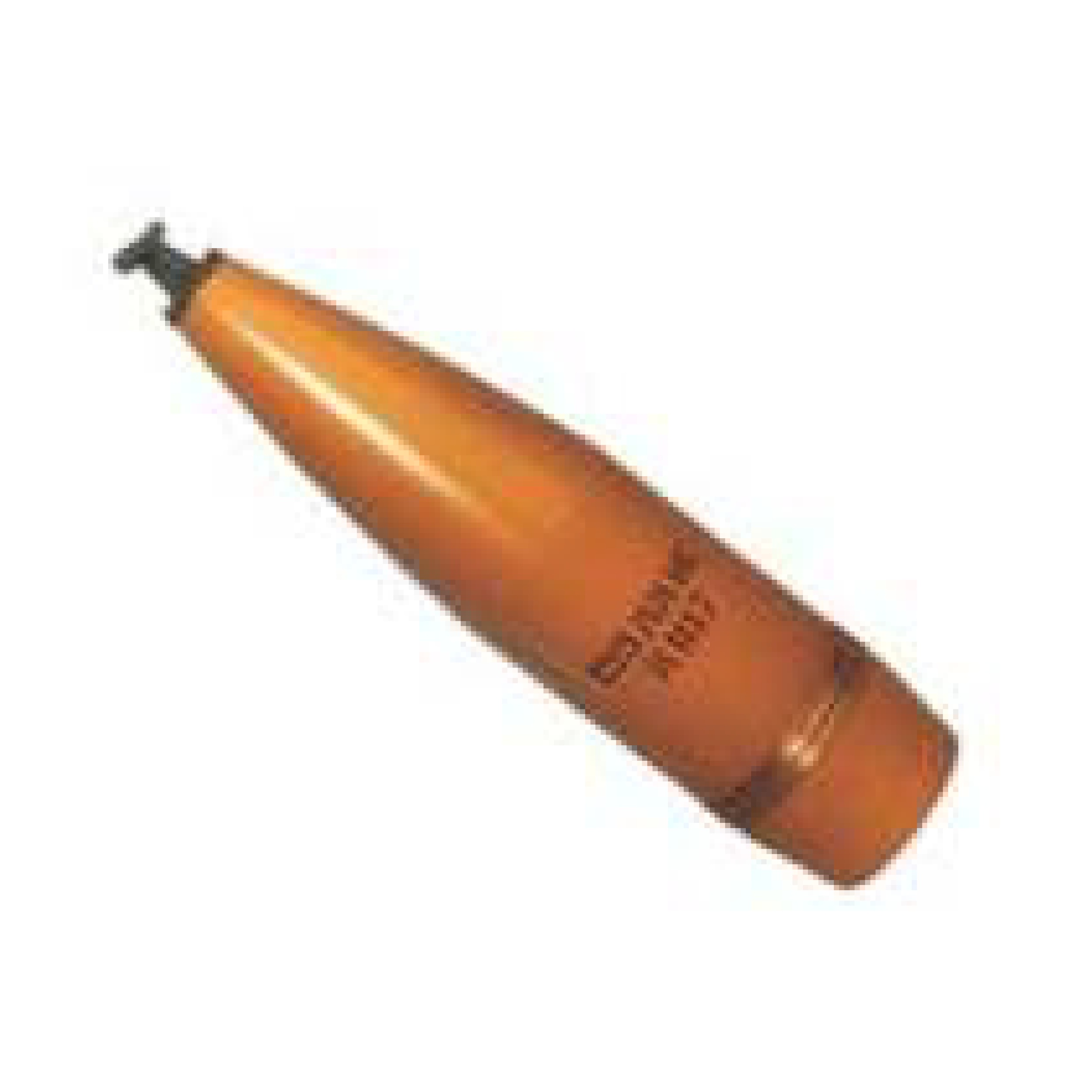

155 mm

Nomenclature : SHELL 155 mm HE M107

Ammunition Details

Net Explosive Content : 6.6 kg

Type of Filling : High Explosive shell filling (TNT)

Range : 18 Km

Size of Shell approx. (D x L) : 154.71 mm x length 604 m

Weight of body with band & pipe disc : 35.136 +- 0.612 kg

155 mm

Nomenclature : SHELL 155 mm Screening Smoke ERFB

Ammunition Details

Maximum Range : Boat Tail - 30 km

Base Bleed - 39 km

Operation Limits : MV - 950 m/sec

Overall Length : Boat Tail - 843 mm

Base Bleed - 861 mm

Compatible Fuze : Electronic Time M8611

Burning Time : 90 - 120 sec

Pyro Technic Mass : 6 kg

Optimum Height : 400 m

Span of Main Parachute : 6850 mm

Design of Canopy : Uni-cross

No. of Rigging Lines : 32

Surface area of Main Parachute : 25 Sqm x 2 nos each

Normal Landing Speed : 260kmph (722 m/s)

Width of Arm (Panel) : 2060 mm

Max Operational load : 23 kg

Basic Material : Fabric Nylon 6-6

Emergency Landing Speed : 300kmph (83.3 m/s)

Length of Rigging lines : 6500 mm

Life of Parachute : 10 years or 45 streamings, whichever is earlier

Mass of Complete Parachute System : 24 kg

Rate of Descent : 6-7 m/s

Canopy Diameter 7.31 -meter

No. of Rigging Lines : 24

Payload with seat : 200 kg

Ejection Speed : 700 KMPH

Release Altitude : 5000 m AGL

Release Speed : 385 KMPH

Design of Canopy : Flat circular

Life of Parachute : 9.5 years / Single operation

Basic Material : Fabric Nylon Low Porosity 48 gm

Undyed / Olive Green / Orange & Sand

Span of Main Parachute : 6850 mm

Design of Canopy : Uni-cross

No. of Rigging Lines : 32

Surface area of Main Parachute : 25 Sqm x 2 nos each

Normal Landing Speed : 260kmph (722 m/s)

Width of Arm (Panel) : 2060 mm

Max Operational load : 23 kg

Basic Material : Fabric Nylon 6-6

Emergency Landing Speed : 300kmph (83.3 m/s)

Length of Rigging lines : 6500 mm

Life of Parachute : 10 years or 45 streamings, whichever is earlier

Mass of Complete Parachute System : 24 kg

Flight Time : Up to 40 Hours

Max Takeoff Weight : Up to 6 Kg

Dimensions : 627 x 475 x 292 mm

Operating Temperature : -20 to +60

Tether Length : Up to 100m

Tether Weight : 16 g/m

Tether Tensile Strength : 120-150 daN (1120-152 Kg)

Power Output : 2200 W continuous

Portable Power Source : 230 VAC 50-60 Hz (4kW min)

120 VAC 50-60 Hz (3kW min)

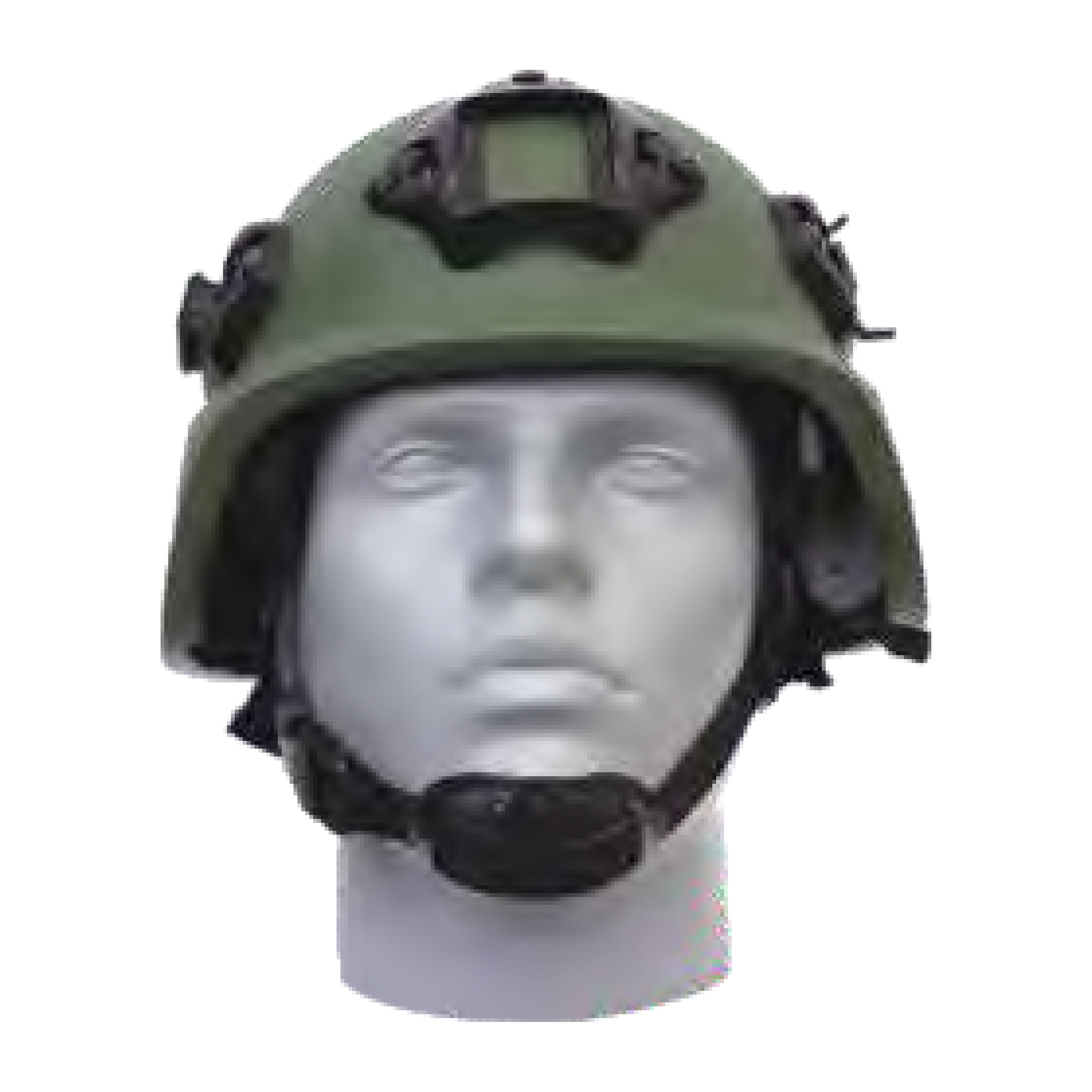

For protection against Threat Level NIJ IIIA or BIS-1 as per IS 17051:2018.

Modular type accessory attachments for Night Vision googles, Visor, Torch, Headphones, Wireless communication devices and Counter weight etc.

Maximum weight of 1.3kg
